Solution: Restore Deleted Private key for EFS Encrypted Files

a

Problem

You have encrypted files using the “File > Properties > Advanced > Encrypt content to secure data” feature in Windows, and have lost your certificates in your personal certificate store.

Solution

A solution to this problem is to restore the private key used for encrypting your file system (EKU: Encrypting File System 1.3.6.1.4.1.311.10.3.4 ) that was generated upon encrypting your files.

The keypair to this certificate is stored in your Personal certificate store, luckily a copy of the public key is stored in your LocalMachine certificate store. This means we can restore the private key and enable decryption as long as the computer has not been reinstalled or lost.

Step-by-step

  1. This file is currently unecrypted. Let’s encrypt is using the method discussed

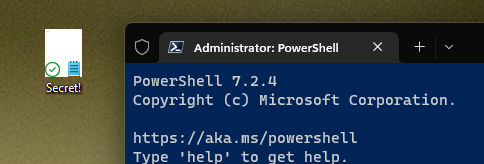

Secret!

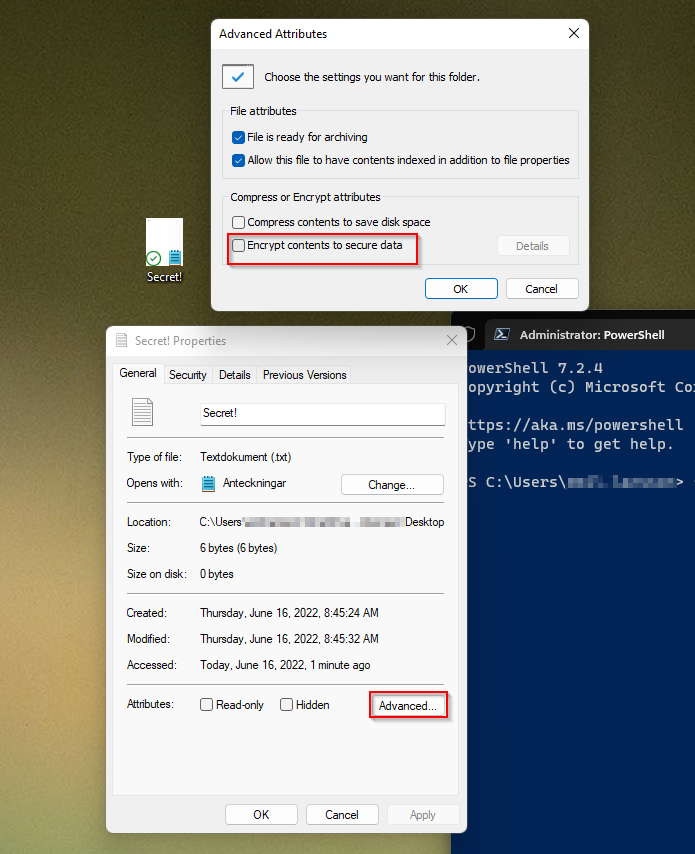

Rightclick the file > properties > advanced > encrypt content..

encrypt_gui encrypt_file

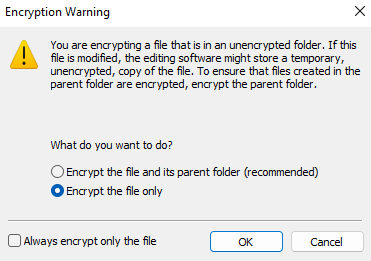

I will select ‘Ecrypt the file only’ in this case

loc_icon

The lock symbol indicates that the file is successfully encrypted. Under the hood, windows generated a self-signed certificate with a private/public keypair in my personal store and a certificate in my localmachine/addressbook only containing a public key.

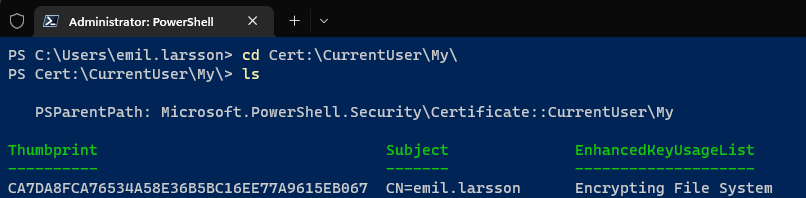

  1. Verify the certificates

currentuser_certstore_cert

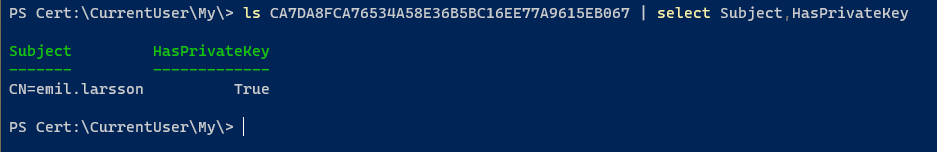

Let’s verify it’s private key:

private

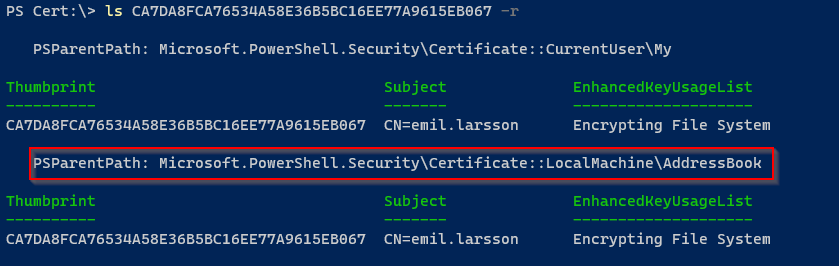

Let’s verify the localmachine/addressbook certificate:

cert_store_public

cert_store_public_private_key

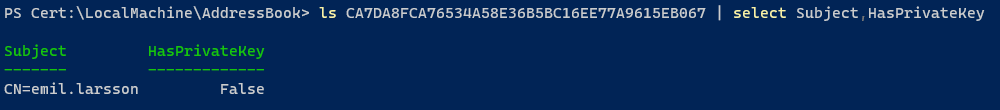

HasPrivateKey: False - tells us this certificate lacks the private key, and is somewhat useless for the decrypting of our file. We will now move on to the issue at hand

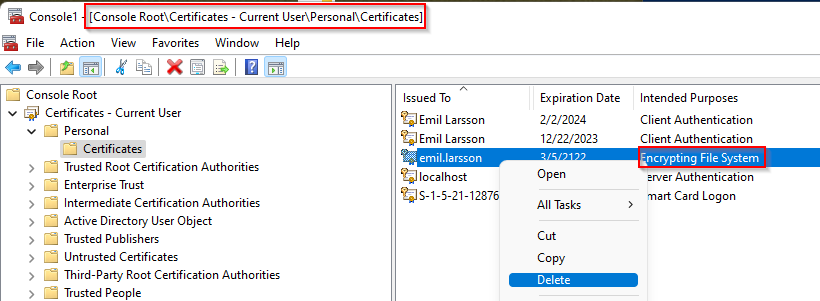

  1. Delete the current users private key to simulate the issue

delete_currentuser_privatekey_cert

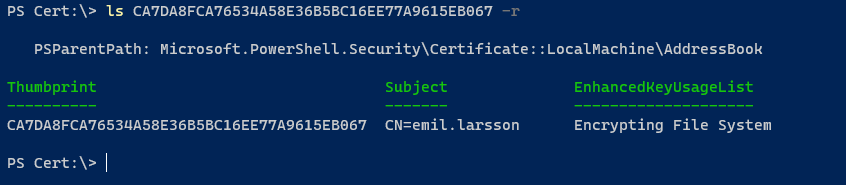

Let’s try to query the certificate store to verify the lack of this deleted certificate

after_deleted_privatekey

We are recursivly looking for the certificate in the root of the certificate store, and we only got one hit. Meaning the private/public keypair has been removed, together with the ability to decrypt our file:

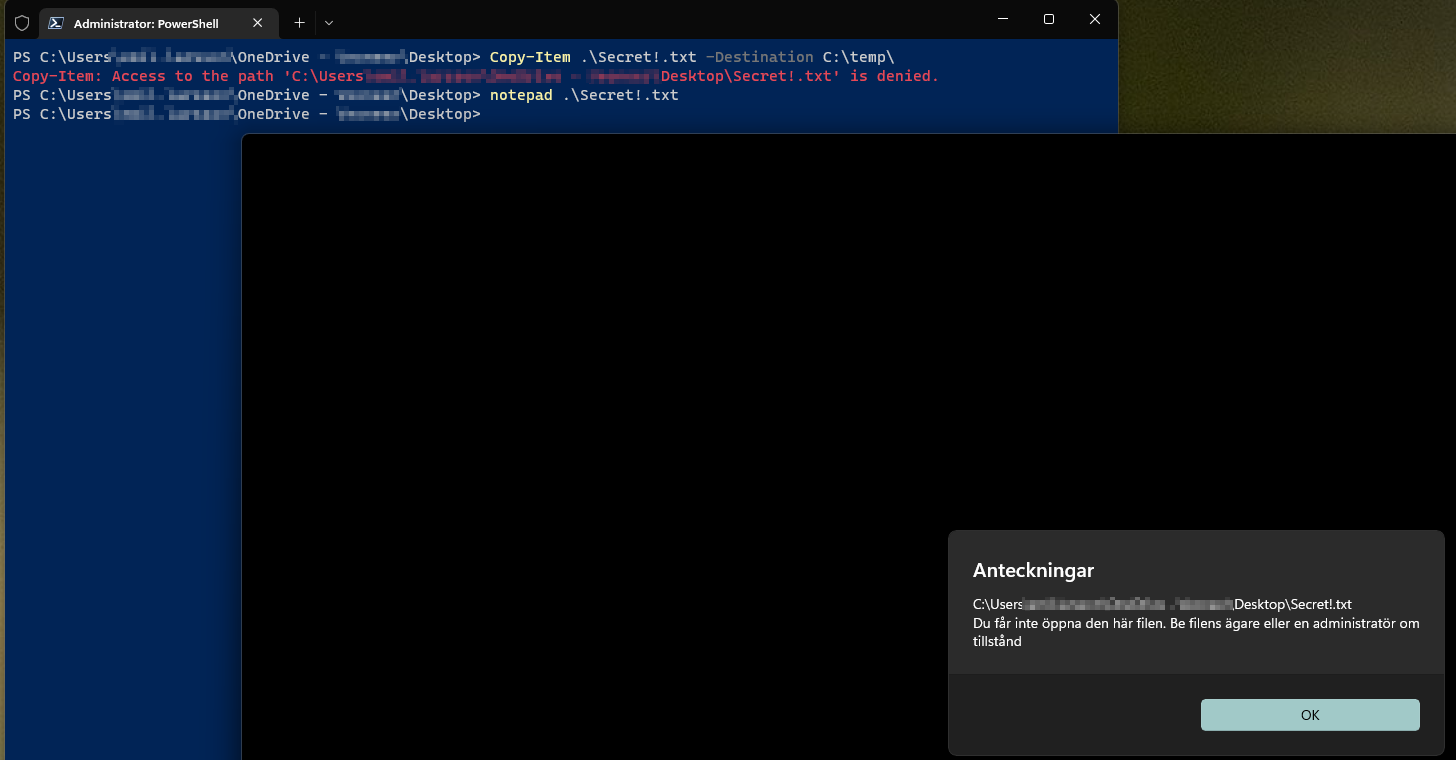

accessdenied_after_removal

The screenshot displays an attempt to move the file, as well as open it with notepad. Both failed due to a “lack of access”.

  1. Restoring the certificate using the public key in LocalMachine store

restore_private_key

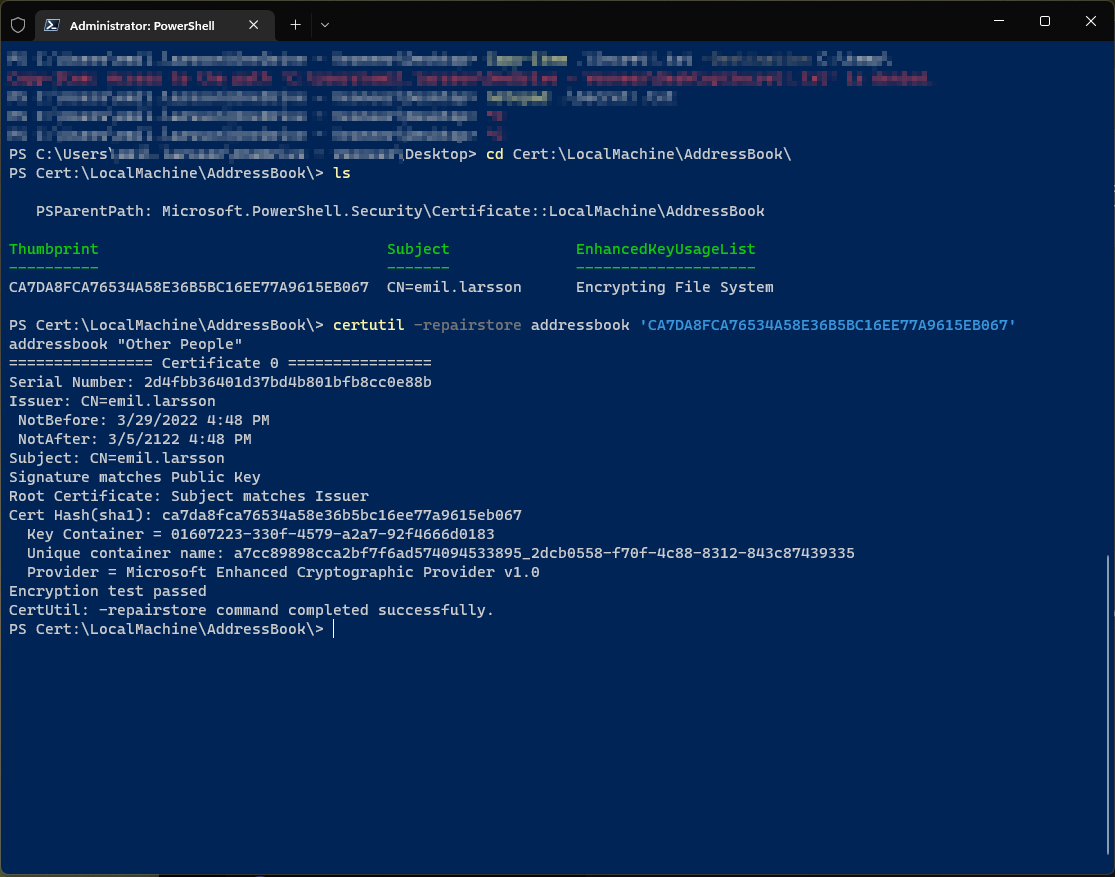

First, we move into the LocalMachine\AddressBook path in the certificate store, and we verify that it contains our public-key based certificate

We then utilize certutil to restore the private-key part of that we had before lost:

certutil -repairstore addressbook '<insert thumbprint>'

privatekey_after_restore_success

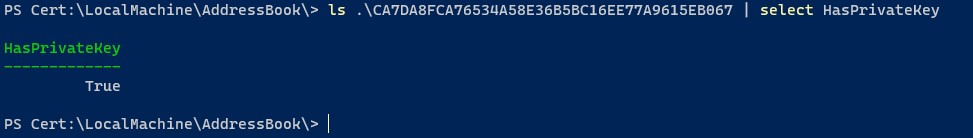

Verify that the PrivateKey was infact restored

We have now restored the most critical part of the removal, but decryption will still fail, since windows will only query your personal store while the decryption process takes place. This means we will need to export this certificate, together with it’s private key - and import it to your personal store.

  1. Export / Import the key-pair to the Personal Store

export_privateandpublic_key

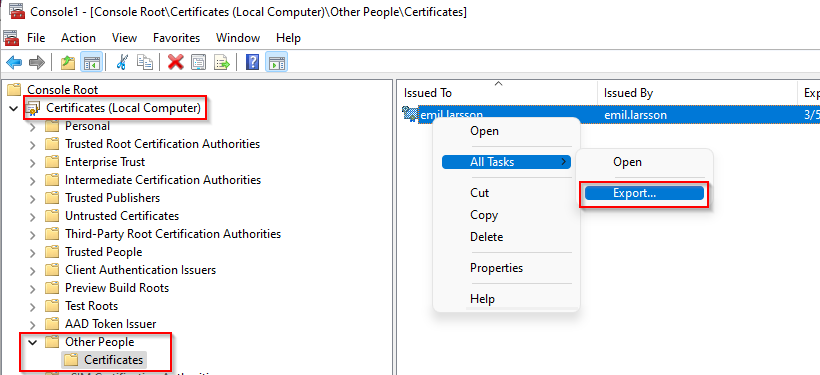

Navigate to the mmc snap-in, import the Certificate snap-in, select Local Computer, and navigate to the ‘Other People’ folder

Right-click the certificate (this is the same certificate that we displayed in PowerShell after the restore process) All Tasks > Export…

private_key_selected

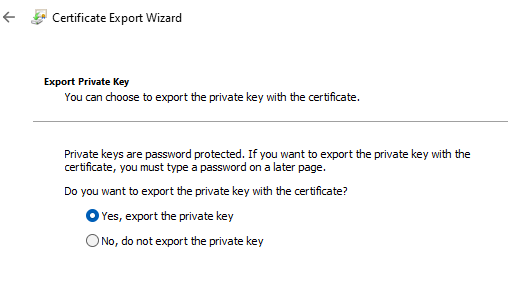

Export the private key > Next

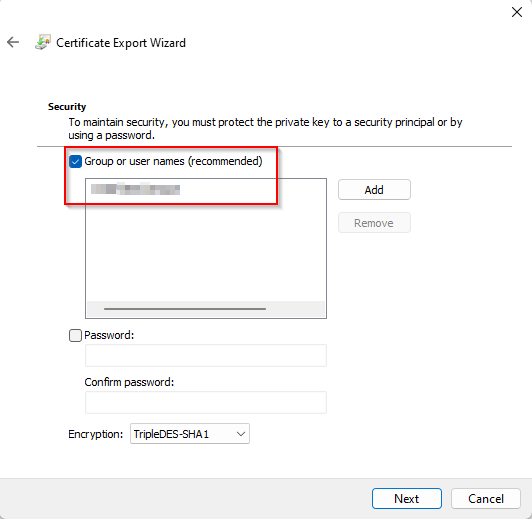

allow_only_current_user

Use your currently logged on user > Next

savetopath

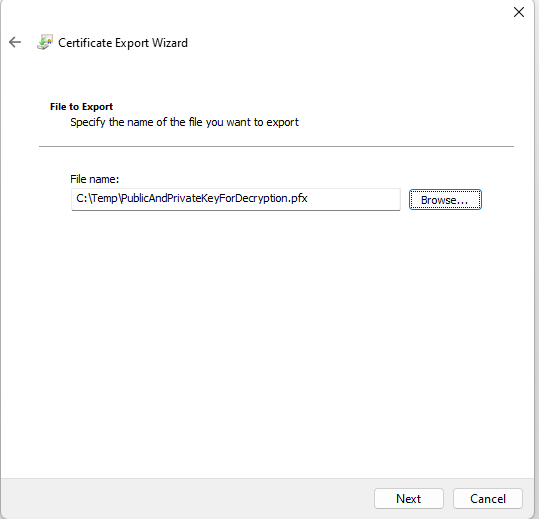

Save to path

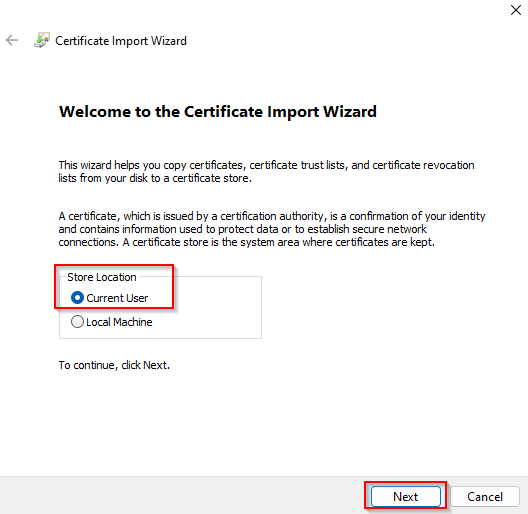

import_current_user

Navigate to the path, right-click > Install PFX, Current User > Next > Next > Next..

successful_import

We have now moved the key-pair back to the personal store, and can now decrypt files

successful_decrypt_and_write

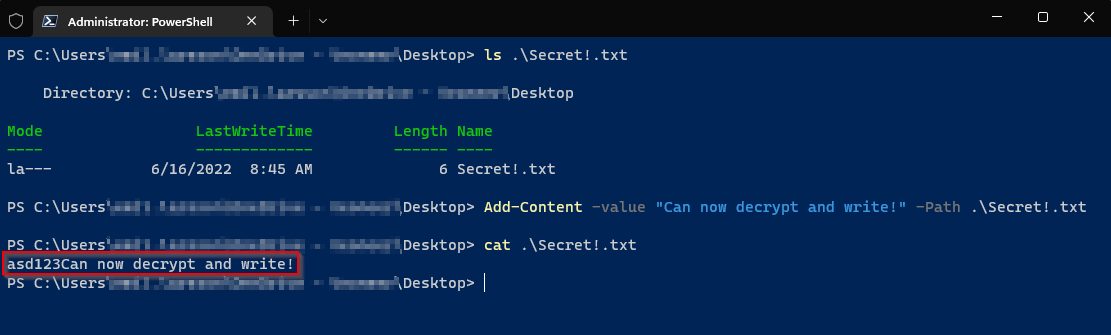

Verifying this by writing to the file, and getting it’s content

successful_open_doubleclick

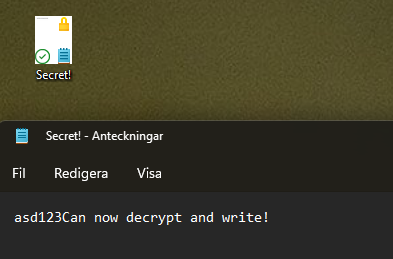

Double-clicking the file now works as expected

Discussion

We have now simulated an issue that unaware users can be exposed to, and solved it using PowerShell, the Certificate snap-in in mmc, and certutil.

Accidential deletion the private/public key-pair in the personal store can be quite common, since IT personel usually perform this, together with a GPUpdate, to re-enroll autoenrollment managed certificates. However, in this case the certificate will not re-enroll itself since it’s a self-signed certificate, only used locally for ecryption/decryption.

This problem be solved in this way for self-signed certificates, I would imagine that it’s the most of cases.

If your Public Key Infrastructure enrolls “Encryption File System” certificates to domain users, a PKI admin could in theory export the certificate in the CA (as long as the private key is exportable, that is).
